Aluminized Silicon Steel Pipe & Tube | Hot-Dip AS Coated | Exhaust, HVAC & Industrial Supply
- Model
- Aluminized Silicon Steel Pipe
Item specifics
- Product Name
- Aluminized Silicon Steel Sheet
- Coating Type
- Type 2 (Pure Aluminum)
- Coating Composition
- Aluminum (Al) 88–91% + Silicon (Si) 5–11%
- Coating Weight Class
- AS80 / AS120 / AS150 (EN standard)
- Base Metal Thickness
- 0.3 mm – 3.0 mm
- Sheet Width
- 20 mm – 1,524 mm (slit-to-width available)
- Length
- Coil / Cut-to-length up to 12,000 mm
- Common Sheet Sizes
- 1000×2000 / 1219×2438 / 1500×3000 mm
Review
Description

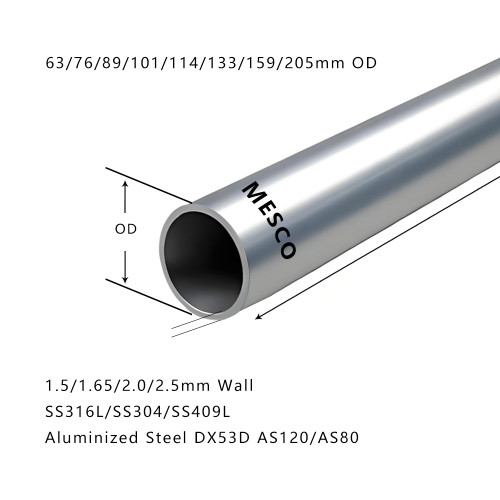

Hot-Dip Al-Si Coated Welded Steel Tube
Manufactured via hot-dip aluminizing with an Al-Si alloy coating, MESCO's aluminized silicon steel pipes deliver exceptional high-temperature oxidation resistance and long-term corrosion protection. With 3,000 MT in stock and exclusive coverage of three coating weights, we are your most reliable supply partner for demanding thermal applications.
From raw material to finished product, MESCO upholds rigorous process standards and maintains ample ready stock to give your project every competitive edge. All three coating weight grades are held in ready inventory — making MESCO one of the rare suppliers capable of delivering the complete Al-Si pipe range without lead time.
Coating weight directly determines corrosion service life and thermal endurance. The 120 g/m² grade suits cost-sensitive, moderate-temperature applications; 240 g/m² is the widely adopted industry benchmark with well-rounded performance; 300 g/m² is engineered for the most demanding high-temperature or aggressive-corrosion environments.
MESCO holds all three grades in ready stock, with no mandatory minimum order quantity (subject to available inventory). Mixed-grade orders are fully supported to satisfy diverse project requirements.
Parameters below are based on MESCO product test data. Final technical specifications shall be subject to the product standard confirmed by both parties. Combining high-temperature endurance, corrosion protection, and excellent formability, aluminized silicon steel pipes serve a wide range of demanding industries.
Coating grades: 120 g/m² · 240 g/m² · 300 g/m² — All in stock · Pre-shipment inspection availableAluminized
Silicon Steel PipeWhy Choose MESCO
Coating Grades · Exclusive Stock
Key Performance Data
Performance Parameter
Value / Result
Notes
Status
Coating Weight
120 / 240 / 300 g/m²
Three grades exclusively held in stock
✓ In Stock
High-Temperature Resistance
Continuous service ≤ 700 °C
Al-Si layer forms stable alumina barrier at elevated temperature
✓ Excellent
Flaring Performance
Flare ratio ≥ 30%, no cracking
Strong coating-to-substrate adhesion; no delamination during forming
✓ Verified
Weld Seam Surface
Smooth, no visible ridges
Dedicated weld-zone treatment; high visual consistency
✓ Premium
Surface Appearance
Bright silver-white, uniform & dense
No skip-coating or drip marks; consistent along full length
✓ Excellent
Salt Spray Corrosion
Significantly superior to galvanized pipe
Al-based coating provides extended service life in neutral salt-spray conditions
✓ Superior
Ready Inventory
3,000 Metric Tons
Multi-spec stock; pre-shipment inspection available
✓ Available
Where It Performs
